Building My First MCP Server: Automated Image Generation with Nano Banana
What is MCP
MCP (Model Context Protocol) is a standardized way for AI assistants like Claude to interact with external tools and services. Think of it as a plugin system that allows Claude to extend its capabilities beyond just text generation. Instead of Claude being limited to answering questions, MCP lets it actually do things - run code, query databases, generate images, and more.
An MCP server exposes "tools" that Claude can call. Each tool has a defined schema (inputs/outputs), and Claude decides when and how to use them based on your requests.
Why I Built This
I wanted Claude Code to generate and edit images directly in my workflow. Specifically, I needed the ability to:
- Generate images from text prompts

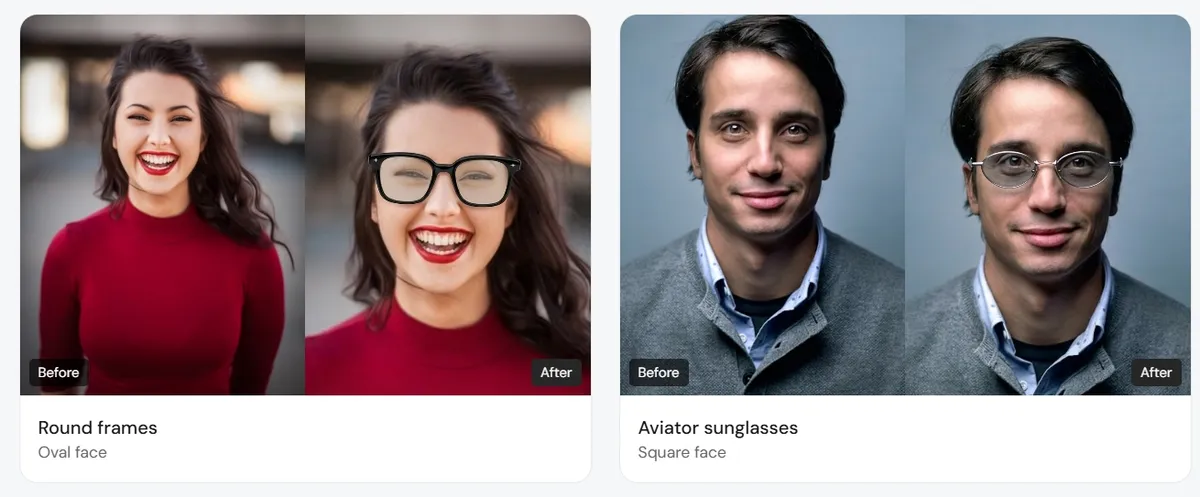

- Combine multiple images (like putting glasses on a face)
- Save results to specific file paths
Google's Gemini models have excellent image generation capabilities, so I built mcp-nano-banana - an MCP server that wraps the Gemini API.
How to Build an MCP Server
Project Structure
A typical MCP server project looks like this:
mcp-nano-banana/
├── src/
│ └── index.ts # Main server code
├── dist/ # Compiled JavaScript (generated)
├── package.json
└── tsconfig.json
Dependencies
You need the official MCP SDK:
{
"dependencies": {
"@modelcontextprotocol/sdk": "^1.0.0"
}
}
Basic Server Structure
Every MCP server follows this pattern:
import { Server } from "@modelcontextprotocol/sdk/server/index.js";
import { StdioServerTransport } from "@modelcontextprotocol/sdk/server/stdio.js";
import {
CallToolRequestSchema,
ListToolsRequestSchema,
Tool,
} from "@modelcontextprotocol/sdk/types.js";
// 1. Define your tools
const tools: Tool[] = [
{
name: "my_tool",
description: "What this tool does",
inputSchema: {
type: "object",
properties: {
param1: { type: "string", description: "First parameter" },
param2: { type: "number", description: "Second parameter" },
},
required: ["param1"],
},
},
];
// 2. Create the server
const server = new Server(
{
name: "my-mcp-server",
version: "1.0.0",
},
{
capabilities: {
tools: {},
},
}
);
// 3. Handle tool listing
server.setRequestHandler(ListToolsRequestSchema, async () => {
return { tools };
});
// 4. Handle tool execution
server.setRequestHandler(CallToolRequestSchema, async (request) => {
const { name, arguments: args } = request.params;
if (name === "my_tool") {
const { param1, param2 } = args as { param1: string; param2?: number };
// Do your work here
const result = await doSomething(param1, param2);
return {
content: [{ type: "text", text: result }],
};
}
throw new Error(`Unknown tool: ${name}`);
});
// 5. Start the server
async function main() {
const transport = new StdioServerTransport();
await server.connect(transport);
console.error("MCP server running on stdio");
}
main().catch(console.error);
Tool Schema Conventions
Tool schemas follow JSON Schema format. Common patterns:
String with enum (dropdown):
{
type: "string",
enum: ["option1", "option2", "option3"],
default: "option1",
description: "Select one option",
}
Array of strings:
{
type: "array",
items: { type: "string" },
description: "List of file paths",
}
Optional vs Required:
inputSchema: {
type: "object",
properties: {
required_param: { type: "string" },
optional_param: { type: "string" },
},
required: ["required_param"], // Only list required ones
}
Response Content Types
MCP supports different content types in responses:
Text response:
return {
content: [{ type: "text", text: "Operation completed" }],
};
Image response (inline base64):
return {
content: [{
type: "image",
data: base64ImageData,
mimeType: "image/png",
}],
};
Multiple content items:
return {
content: [
{ type: "text", text: "Generated image:" },
{ type: "image", data: imageData, mimeType: "image/png" },
],
};
Error response:
return {
content: [{ type: "text", text: `Error: ${errorMessage}` }],
isError: true,
};
Registering with Claude Code
Add your MCP server to Claude Code's config (~/.claude/claude_desktop_config.json):
{
"mcpServers": {
"nano-banana": {
"command": "node",
"args": ["/path/to/mcp-nano-banana/dist/index.js"],
"env": {
"GEMINI_API_KEY": "your-api-key"
}
}
}
}
Build and Run
# Build TypeScript
npm run build
# The server runs via stdio, so Claude Code starts it automatically
# For manual testing:
node dist/index.js
The Development Log
Initial Setup
The basic structure was straightforward:
- Define tools with JSON schemas for inputs
- Handle tool calls and make API requests to Gemini
- Return results back to Claude
const tools: Tool[] = [
{
name: "generate_image",
description: "Generate an image using Google Gemini AI model",
inputSchema: {
type: "object",
properties: {
prompt: { type: "string" },
imagePaths: { type: "array", items: { type: "string" } },
// ...
},
required: ["prompt"],
},
},
];
Exception #1: Rate Limiting (429 Errors)
The Problem: On Gemini's free tier, I kept hitting 429 (Too Many Requests) errors when making multiple calls.
The Solution: I implemented automatic fallback from the high-quality gemini-3-pro-image-preview model to the faster gemini-2.5-flash-image model when rate limits are hit:
if (!response.ok && model === "gemini-3-pro-image-preview") {
const status = response.status;
if (status === 429 || status === 403 || status === 402) {
usedModel = "gemini-2.5-flash-image";
didFallback = true;
response = await makeRequest(usedModel);
}
}
This ensures generation always succeeds, even if with a different model.
Exception #2: Missing Output Path
The Problem: The MCP tool could generate images, but Claude Code couldn't save them to disk. When I tried to use outputPath, the file wasn't being saved - it was still returning the image inline.
The Symptom:
Model used: gemini-3-pro-image-preview
[Image]
But checking the file showed an old timestamp - it wasn't updated.
The Root Cause: I had added the outputPath parameter to the schema and handler, but forgot to rebuild the TypeScript before restarting the MCP server. The running server was using old compiled JavaScript.
The Fix: Always run npm run build after code changes, then restart the MCP connection.
Exception #3: Image Not Updating
The Problem: Even after implementing outputPath, the generated images weren't being saved.
The Investigation: The response showed [Image] which meant it was returning inline data, not saving to file. This indicated the outputPath condition wasn't being triggered.
The Solution: Ensure the parameter is properly destructured and passed through:
const { prompt, imagePaths, model, aspectRatio, outputFormat, outputPath } = args as {
prompt: string;
imagePaths?: string[];
model?: string;
aspectRatio?: string;
outputFormat?: string;
outputPath?: string; // Don't forget this!
};
// Later in the handler:
if (outputPath) {
await writeFile(outputPath, Buffer.from(result.imageData, 'base64'));
content.push({ type: "text", text: `Image saved to: ${outputPath}` });
}
Key Lessons Learned
Always rebuild after TypeScript changes - The MCP server runs compiled JS, not TS directly
Handle API rate limits gracefully - Free tiers have strict limits; implement fallbacks
Test with actual Claude Code integration - Unit tests aren't enough; the real MCP protocol has nuances
Add file output options - Claude Code works better with file paths than inline binary data
Default to the better model - Users can always downgrade, but defaulting to quality (
gemini-3-pro-image-preview) provides better first impressions
Final Architecture
Claude Code
↓ (MCP Protocol)
mcp-nano-banana server
↓ (HTTPS)
Gemini API
↓
Generated Image → saved to outputPath
What's Next
- Add retry logic with exponential backoff for transient failures
- Support more Gemini models as they're released
- Add image editing capabilities (inpainting, outpainting)
- Implement batch processing for multiple generations
Building an MCP server is surprisingly straightforward once you understand the protocol. The main challenges are handling real-world API issues like rate limiting and ensuring the tool parameters are properly wired through the entire call chain. Start simple, test with real usage, and iterate.
